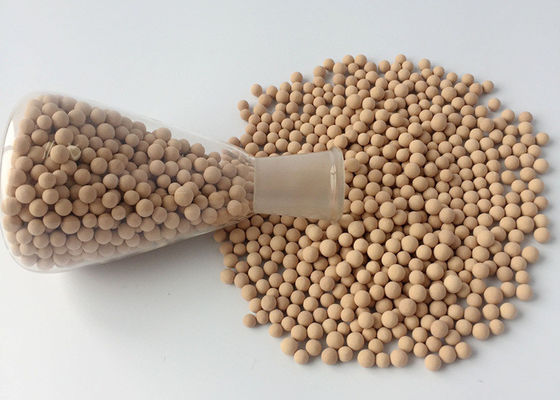

SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21%

10 kilogram
MOQ
negotiable
fiyat
SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21%
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Şekil: küre
Yığın Yoğunluğu: ≥ 0,75 g/ml
Boyut: 1,6-2,5 mm, 3,0-5,0 mm
Çiy noktası: ≤ -73 ≤
Basınç Dayanımı: 100n
Statik Su Adsorpsiyonu: ≥ %21
Temel bilgiler
Menşe yeri: Shaanxi, Çin
Marka adı: Xi'an Lvneng
Sertifika: ISO9001:2008
Model numarası: 3A Moleküler Elek
Ödeme & teslimat koşulları
Ambalaj bilgileri: 1. 25KG/Karton Varil, 2. 25KG/Karton Kutu, 3. 150KG/Mühürlü Demir Varil
Teslim süresi: 3-15 iş günü
Ödeme koşulları: Western Union,T/T,L/C
Yetenek temini: 100 Ton/ Ayda
Ürün Açıklaması
3A Zeolite Molecular Sieve Desiccant For Ethylene Propylene Natural Gas Desiccation
Product Overview

The 3A molecular sieve features a large specific surface area with uniform particle size, smooth appearance, and high mechanical strength. It exhibits strong dilution capabilities, no swelling after water absorption, no cracking, maintains original state, is odorless, and insoluble in water and ethanol.

In industrial production, it's used for drying gases including air, hydrogen, oxygen, nitrogen, and argon. Typically, two adsorption dryers are connected in parallel - one operates while the other regenerates, ensuring continuous equipment operation. The dryer works at 8-12°C and regenerates by flushing under heating to 350°C. Molecular sieves also provide good catalytic effects for certain organic gas reactions.

3A molecular sieve is an alkali metal aluminosilicate, also known as 3A zeolite molecular sieve. It primarily adsorbs water and does not adsorb any molecules with diameters larger than 3Å, making it essential for deep drying, refining, and polymerization of gas and liquid phases in petroleum and chemical industries.

SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 0 SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 1 SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 2
Technical Specifications
Item Unit 8×12 Mesh 4×8 Mesh
Bead Size mm 1.6-2.5 3.0-5.0
Bulk Density g/ml ≥ 0.75 0.68
Equilibrium Water Capacity @ 25°C wt% ≥ 21 21
Equilibrium Ethylene Capacity mg/g ≤ 3.0 3.0
Heat of Adsorption BTU/lb of H₂O 1800 1800
Crush Strength (Point Contact) N ≥ 35 100
Variation Coefficient - 0.3 0.3
Attrition Rate wt% ≤ 0.1 0.1
Size Qualification % ≥ 98 98
Package Moisture wt% ≤ 1.5 1.5
Packaging
SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 3 SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 4 SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 5
Factory Overview
SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 6 SGS & REACH Certified 3A Zeolite Molecular Sieve Desiccant with Dew Point ≤ -73℃ and Static Water Adsorption ≥21% 7
Usage Guidelines
  • The product cannot be exposed in open air and should be stored in dry conditions with air-proof bags
  • It should be regenerated after a certain period of adsorption. The appropriate regeneration temperature should be below 350°C
Frequently Asked Questions
Q: Could we send a free sample for reference?
A: Yes, of course.
Q: What about the price and MOQ?
A: We promise a competitive price with top quality, and accept both mass and small quantity orders.
Q: What is the lead time?
A: Within 15 days after receiving payment.
Q: Payment term?
A: 100% TT in advance, or 30% TT deposit with balance before shipment.
Q: How to solve problems after sales?
A: Take photos of the problems. After confirmation, we will provide a satisfying solution within 3 days.

For more information please contact us. It's our pleasure to serve you.
